Unity Particle System Previewer

Particle System Previewer is a Unity Editor extension designed for VFX artists, technical artists, and game developers who need a faster way to browse, preview, analyze, and capture Particle System prefabs.

Instead of repeatedly placing effects into test scenes, you can inspect Particle System prefabs from a dedicated preview window inside the Unity Editor.

KEY FEATURES

• Particle System Prefab Browser

Scan a selected Assets folder and optionally include subfolders.

Browse prefabs using thumbnails, search, favorites, recent items, and issue filters.

• Playback Controls

Play, pause, stop, restart, loop, adjust playback speed, and inspect effects using timeline controls.

• Preview Camera

Orbit, zoom, adjust camera FOV, change the background color, use a custom skybox, and display a configurable ground grid.

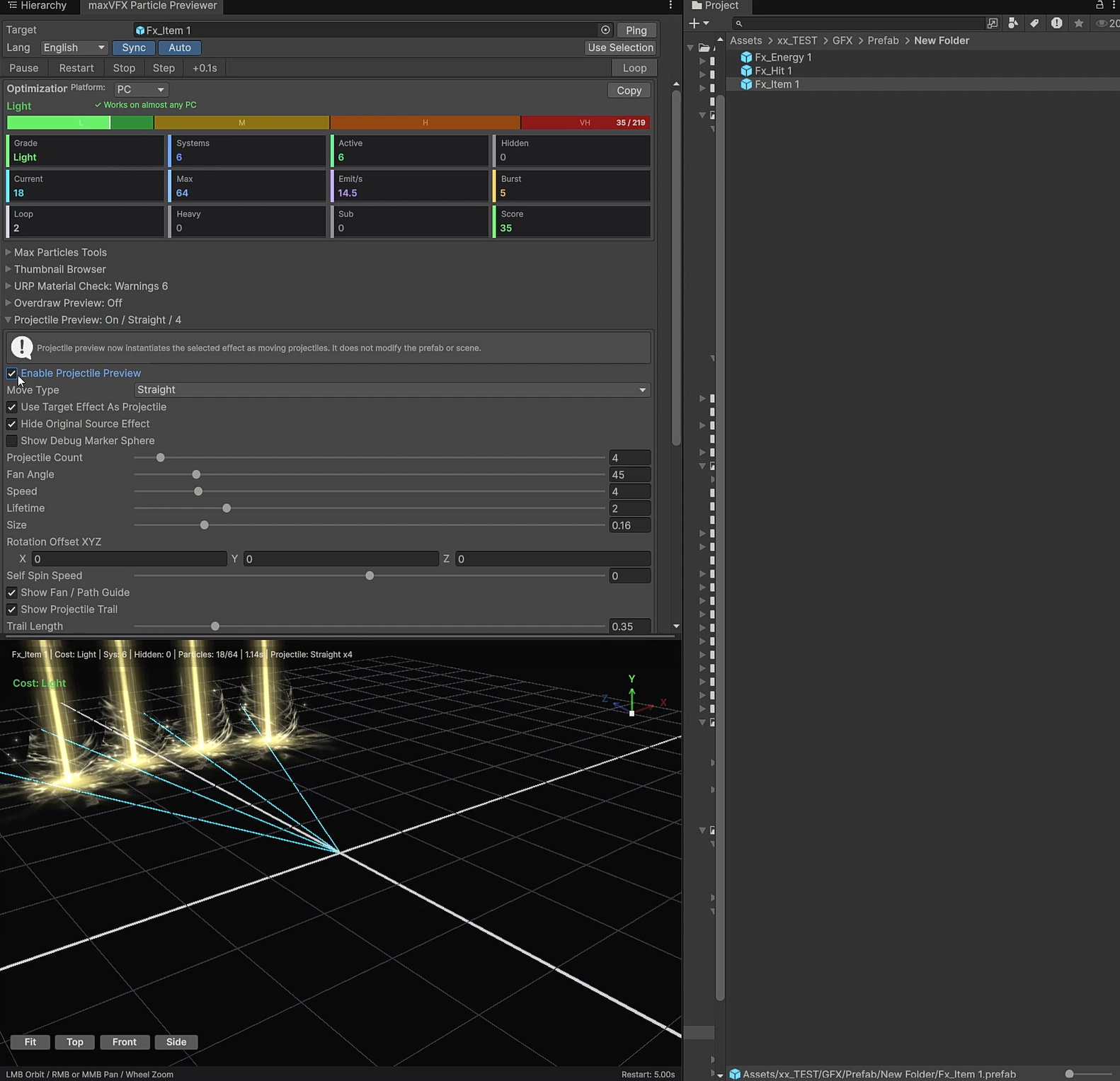

• Projectile Preview

Preview the selected effect as moving projectiles using straight, circular orbit, and parabolic movement modes.

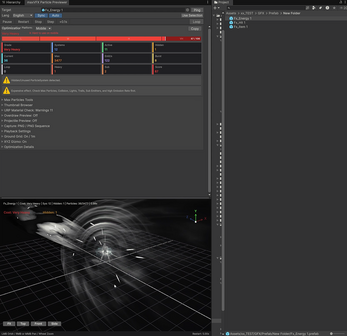

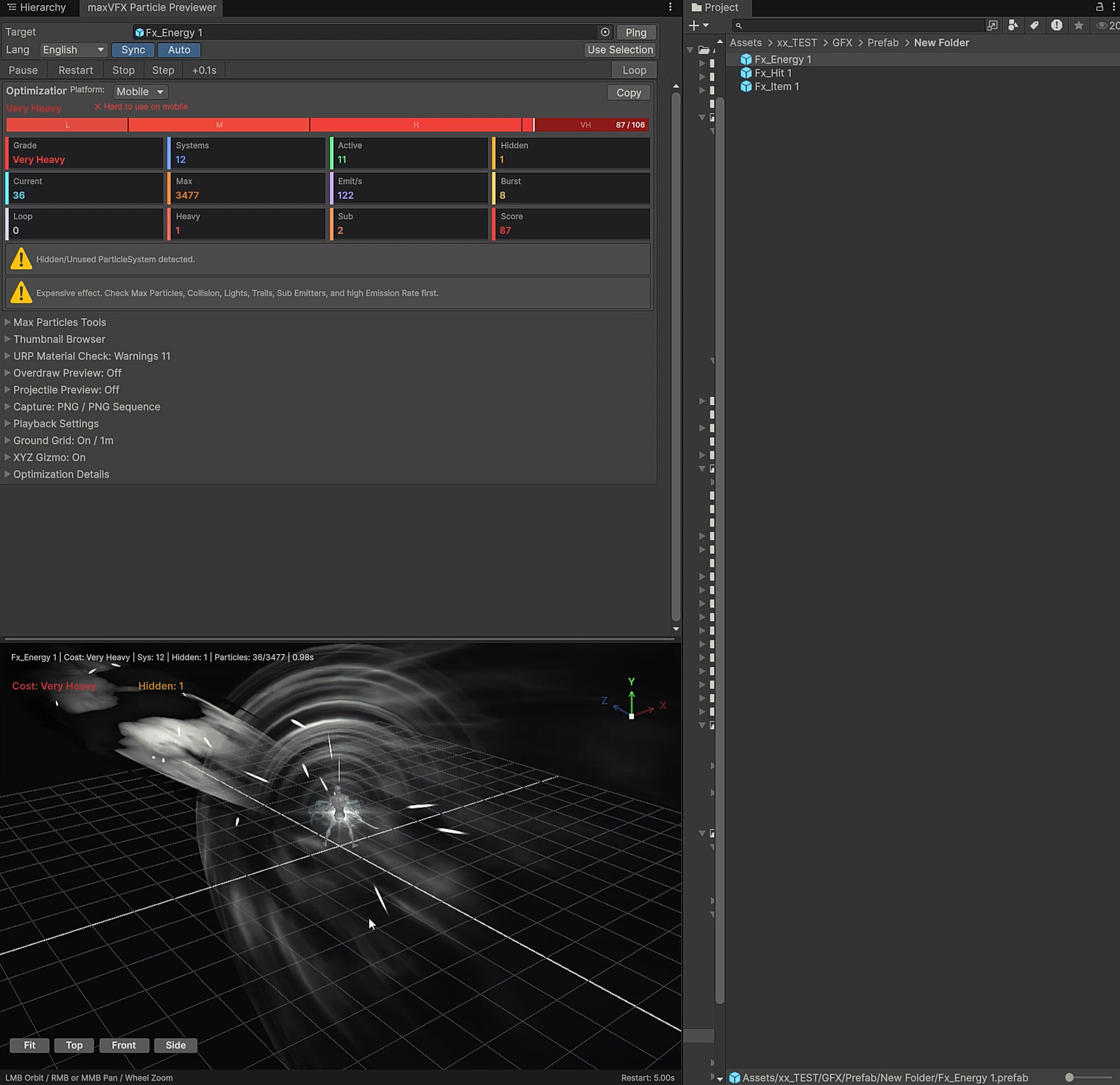

• Particle Analysis

Analyze Particle System prefabs using Mobile, PC, and VR-oriented performance guidelines.

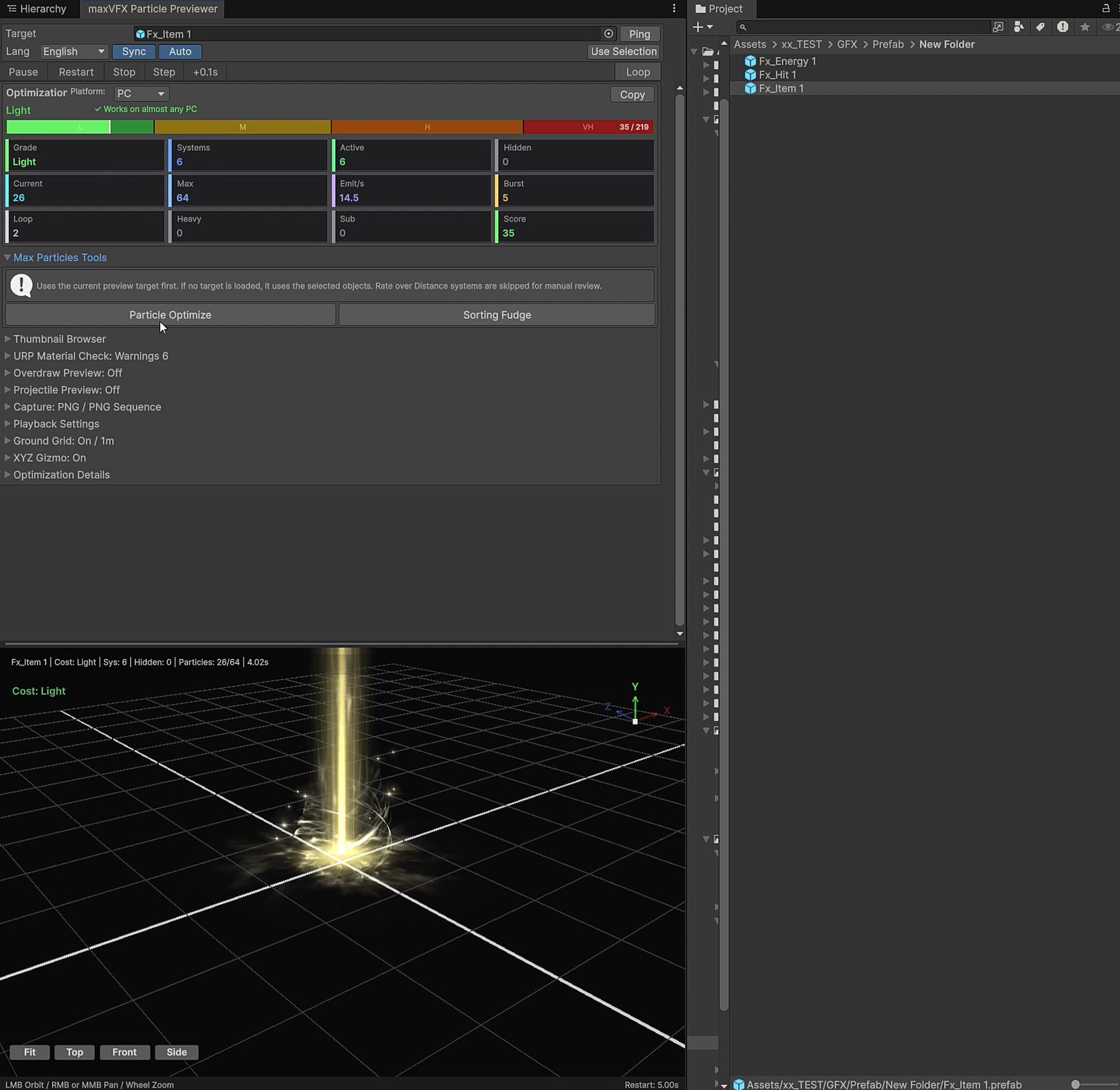

• Max Particles Optimizer

Calculate recommended Max Particles values and apply optimizations with configurable safety margins and Unity Undo support.

• Material Validation

Check Particle System renderer materials and identify missing, Built-in, custom, or potentially incompatible URP materials.

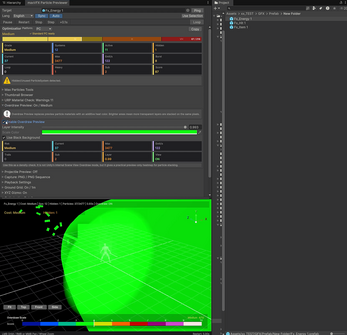

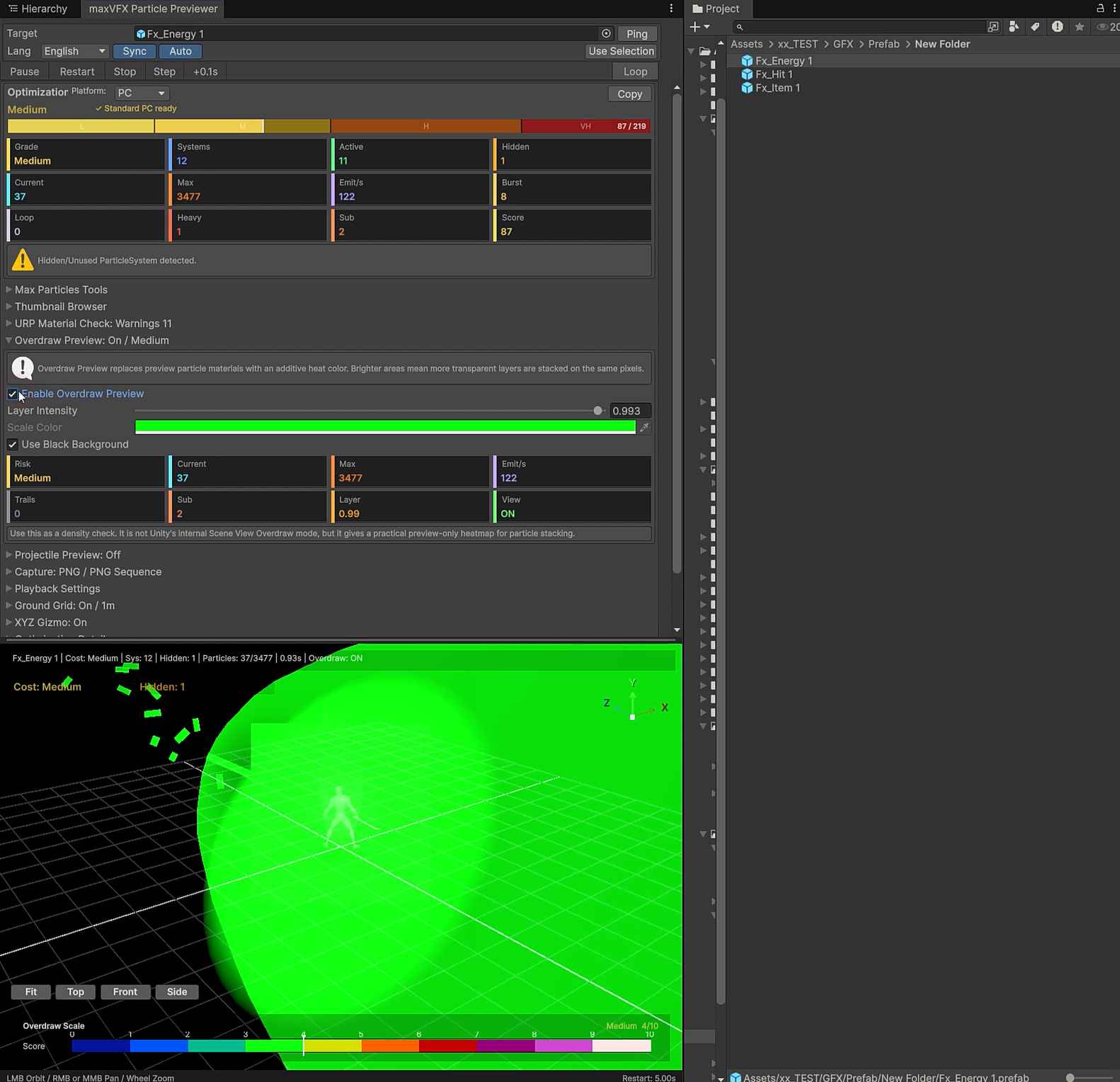

• Overdraw Preview

Replace preview materials with a heat-style additive visualization to identify areas with excessive transparent particle overlap.

• PNG Capture

Export a single PNG image or a PNG sequence with adjustable resolution, FPS, duration, transparent background, and grid visibility.

• Multilingual Interface

English, Korean, and Japanese interface support.

INSTALLATION

1. Download and extract the ZIP file.

2. Import the included UnityPackage into your Unity project.

3. Wait for Unity to finish compiling.

4. Open the tool from:

Tools > maxVFX > Particle System Previewer

INSTALLATION PATH

Assets/maxVFX/Editor/MaxVFXParticleSystemPreviewer.cs

IMPORTANT

This product is a Unity Editor extension.

It is not a standalone application.

GIF export is not included in version 1.0.0.

LICENSE

One purchase grants a license to one individual user.

The tool may be used in personal and commercial Unity projects.

Redistribution, resale, sharing, sublicensing, or repackaging of the source files is prohibited.
